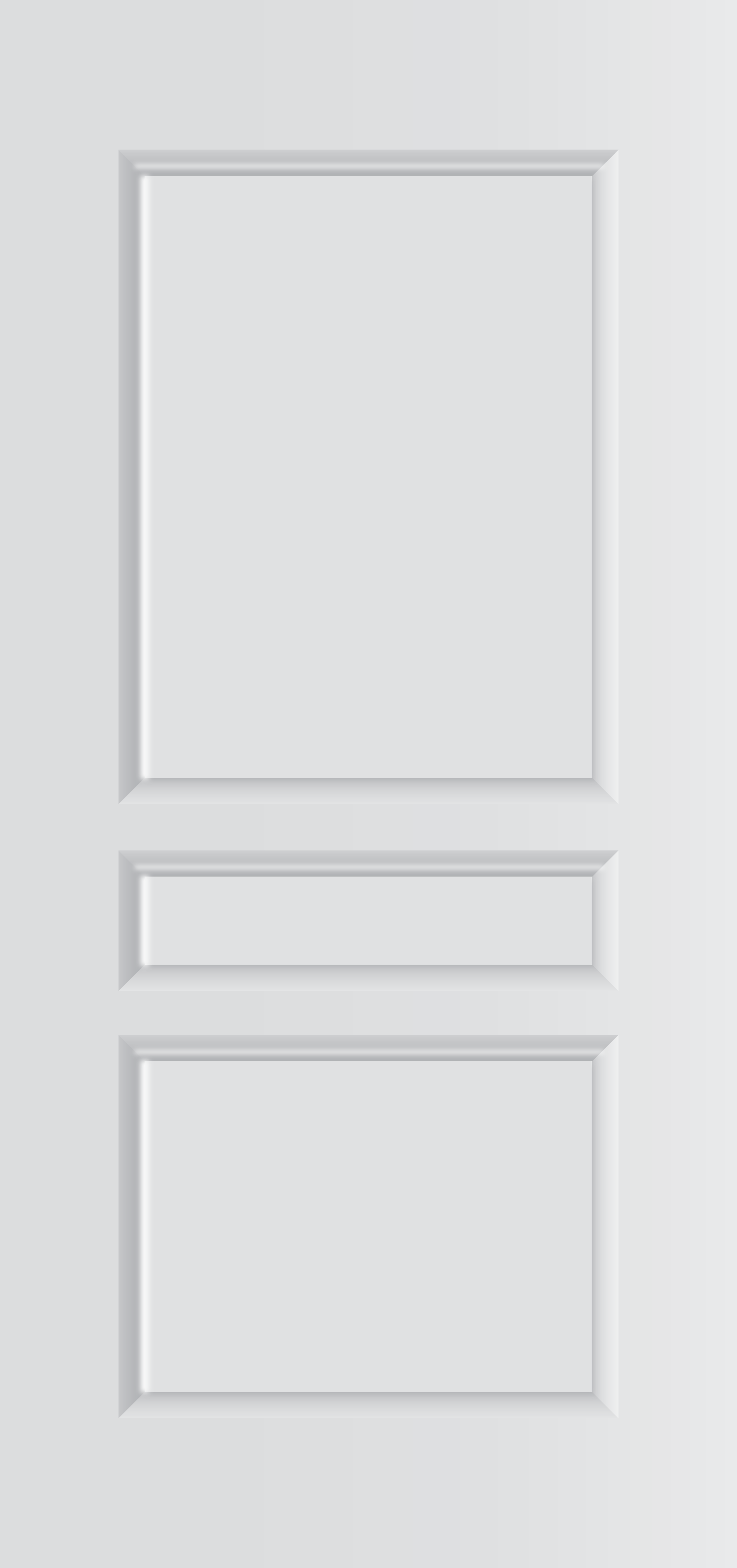

HDF Moulded Door Skin
A fusion of high density fiberboard (HDF) moulded door skin and the fashionable oak wood grain with high quality wooden frame can be cut or drilled to your requirement to make VR Moulded Door.
High quality VR Moulded door skin is pre-coated by a special primer* and easy for installation.
Standard Thickness: 3.1mm
Panel Size: Width - 648mm, 749mm, 800mm, 851mm, 901mm, 952mm. Length - 2125mm.
Colour: White Primer Coated
Note: Some designs require to have MOQ. Kindly refer to the sales person for more detail.
HDF Moulded Door Skin Specifications
PHYSICAL PROPERTIES |
UNIT |
THICKNESS 3.1 MM | |
|---|---|---|---|
| TYPE - UF (Melamine - Urea Formaldehyde Resin Type) |
|||
| Density | kg/m3 | 800 - 1,000 | |
| Moisture Content | % | 5 - 11 | |
| Thickness Swelling (20°C, 24 hrs) | % | ≤ 25 | |
| Thickness Tolerance | mm | 3.1 ± 0.2 | |
| Width & Length Tolerance | mm/m | ± 2.0 | |
| Squareness | mm/m | ± 3.25 | |
MECHANICAL PROPERTIES |
UNIT |
THICKNESS 3.1 MM | |
|---|---|---|---|
| TYPE - UF (Melamine - Urea Formaldehyde Resin Type) |
|||
| Modulus of Rupture (MOR) | MPa | ≥ 45 | |
| Modulus of Elasticity (MOE) | MPa | ≥ 3,500 | |
| Internal Bond (IB) | MPa | ≥ 2.0 | |
| Face Strenght (FS) | Newton | ≥ 1.5 | |
